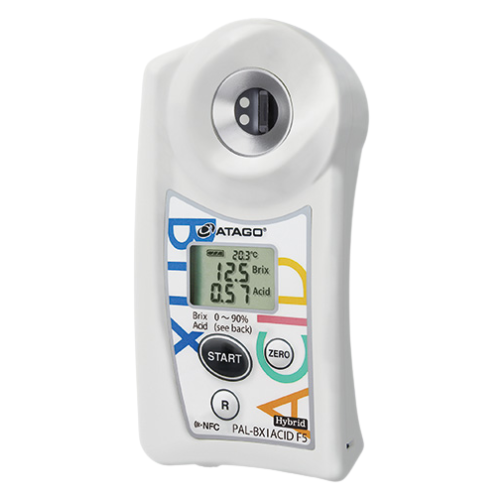

Product Name: PAL-BX|ACID F5
Product Description
With PAL-BX|ACID, the integral parameters of fruit, sugar (Brix) and acidity can be measured with one device. It measures sugar level (Brix) through a refractometry method using light refraction. Also, it measures acidity level through electroconductivity method using electrical current.
Product Information
Model PAL-BX|ACID F5
Cat No. 7100
Range “Brix : 0.0 to 90.0％
Acid : 1L (Low Acidity Citrus) 0.10～4.00%
: 1H (High Acidity Citrus) 2.50～8.80%
: 2 (Grape & Wine) 0.10～4.00%
: 3 (Tomato) 0.10～3.00%
: 4 (Strawberry) 0.10～3.50%
: 5 (Blueberry) 0.10～4.00%
10.0 to 40.0℃”
Resolution “Brix : 0.1％
Acid : 0.01％
0.1℃”
Accuracy “Brix : ±0.2％
Acid : ±0.10％ (0.10 to 1.00％)
Relative precision ±10% (1.01 to 4.00%)
±1℃”
More Details
“Measurement Time ” Approx. 3 seconds
Power Supply 2 × AAA Batteries
International Protection Class IP65
Dimensions & Weight 55(W)×31(D)×109(H)mm, 100g
Product Tags
Instrument Type Hybrid Meters
Unit of Parameter % brix, % acidity
Fluid to be Tested Juice, Alcoholic Beverage, Others
