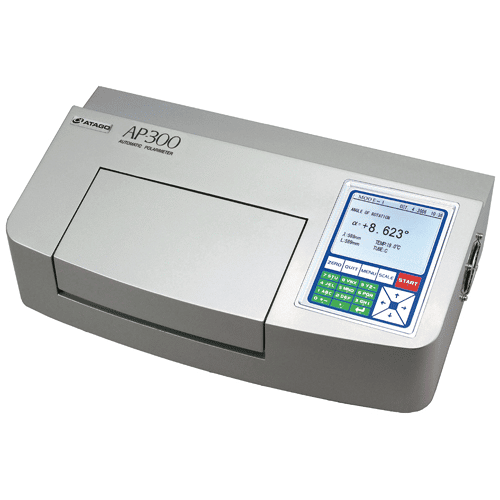

AP-300 (Automatic Polarimeter)

Description

AP-300 is a fully automatic polarimeter used to measure the optical rotation of liquid samples by simply placing the filled observation tube in the sample chamber and pressing START. It provides large, easy-to-read digital measurement values and is commonly used in pharmaceutical, perfume, cosmetic, chemical, food, and industrial applications for accurate angle of rotation analysis. It also features an International Sugar Scale for use in sugar industry measurements.

The unit comes with a standard 2-year limited manufacturer warranty, extendable to 3 years upon product registration with ATAGO.

Product Information

Model AP-300
Cat No. 5291
Range Angle of Rotation : -89.999 to +89.999°
International Sugar Scale : -130.000 to +130.000°Z
Resolution Angle of Rotation : 0.001°
International Sugar Scale : 0.001°Z
Accuracy Angle of Rotation
Displayed value : ±0.01° (-35.00 to +35.00°)
Relative precision : ±0.2% (-35.01° to -89.99° , +35.01° to +89.99°)
International Sugar Scale
Displayed value : ±0.03°Z (-101.00 to +101.00°Z)
Relative precision : ±0.2% (-130.00 to -101.01°Z , +101.01 to +130.00°Z)
(Checked by reading a standard Quartz Plate)

More Details

Measurement Readings Angle of Rotation,
International Sugar Scale
Specific Optical Rotation
Concentration and Purity
Temperature compensation 18.0 to 30.0° for ISS
Measurement Wavelength 589nm (equivalent to the sodium-D line spectrum)
Dimensions & Weight 48.5×28.5×17.5cm, 14.4kg
Output • Digital Printer DP-AD (Optional)
• RS-232C
